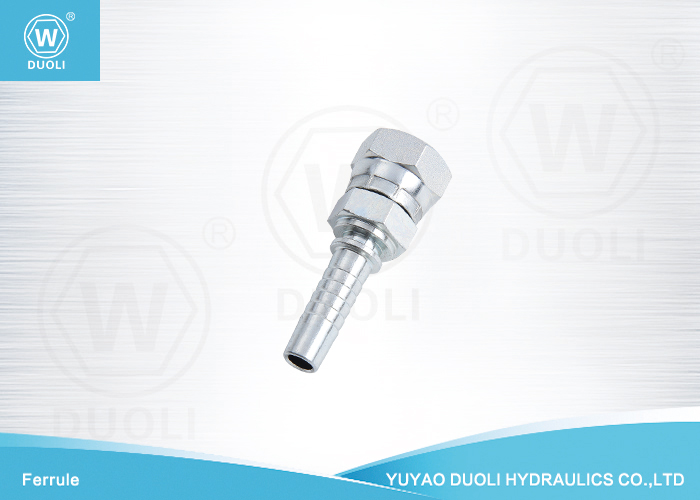

The BSP Female 60° Cone Swivel Nut with Double Hexagon is a versatile and essential component in hydraulic and fluid systems, renowned for its reliability and ease of use. Designed to meet the exacting standards of the British Standard Pipe (BSP) threading system, this fitting offers compatibility with a wide range of fluid connectors and pipes.
The 60° Cone, a hallmark of this fitting, ensures a tight and leak-proof seal when mated with a corresponding male component, making it ideal for high-pressure applications. What sets this fitting apart is its Swivel Nut feature, which allows for effortless installation and alignment adjustments. This innovative design reduces the risk of cross-threading, enhancing overall safety and efficiency.
Furthermore, the Double Hexagon configuration provides a sturdy grip for wrenches or tools during assembly and disassembly. This dual-hex design not only simplifies installation but also ensures a secure and reliable connection, reducing the chances of leaks or system failures.
Part No. |
Thread E |
WINNER |
Description |
01-04-04 DH |
G1/4"×19 |
22611D-04-04SM |
|
01-06-06 DH |
G3/8"×19 |
22611D-06-06SM |
|
01-08-08 DH |
G1/2"×14 |
22611D-08-08SM |
|
01-10-10 DH |
G5/8"×14 |
22611D-10-10SM |
|
01-12-12 DH |
G3/4"×14 |
22611D-12-12SM |
|
01-16-16 DH (HEX S41) |
G1"×11 |
22611D-16-16SM |
|
01-20-20 DH |
G1.1/4"×11 |
22611D-20-20SM |
|
01-24-24 DH |
G1.1/2"×11 |
22611D-24-24SM |
|
01-32-32 DH |
G2"×11 |
22611D-32-32SM |
