The BSP Female ISO 1179, a significant standard in hydraulic engineering, plays a crucial role in ensuring seamless connectivity and functionality within hydraulic systems. BSP, which stands for British Standard Pipe, is a widely recognized thread standard that has been adopted globally. Specifically, the BSP Female ISO 1179 standard focuses on the female port connection within hydraulic systems.
ISO 1179 defines the requirements and dimensions for this female port, ensuring a consistent and precise fit with corresponding male BSP threads. This standard is vital for maintaining compatibility and efficiency in hydraulic machinery and equipment. The standardized design allows for interchangeability and ease of assembly, streamlining the process of connecting various components within a hydraulic system.
In hydraulic applications, where pressure and fluid control are paramount, a secure and accurate connection is essential. The BSP Female ISO 1179 standard achieves this by stipulating precise thread dimensions and tolerances, ultimately enhancing the reliability and safety of hydraulic systems.
PART NO. |
Thread |
WINNER PART NO. |
Description |
|
1 |
2 |
|||
ADXX-02-02 |
G1/8"×28 |
G1/8"×28 |
7B-02 |

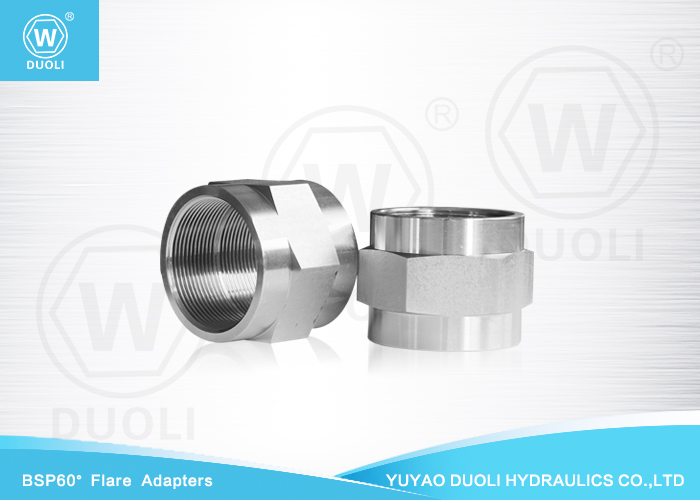

BSP FEMALE ISO 1179
|
ADXX-04-04 |
G1/4"×19 |
G1/4"×19 |
7B-04 |
|
ADXX-06-06 |
G3/8"×19 |
G3/8"×19 |
7B-06 |
|
ADXX-08-08 |
G1/2"×14 |
G1/2"×14 |
7B-08 |
|
ADXX-10-10 |
G5/8"×14 |
G5/8"×14 |
7B-10 |
|
ADXX-12-12 |
G3/4"×14 |
G3/4"×14 |
7B-12 |
|
ADXX-16-16 |
G1"×11 |
G1"×11 |
7B-16 |
|
ADXX-20-20 |
G1.1/4"×11 |
G1.1/4"×11 |
7B-20 |
|
ADXX-24-24 |
G1.1/2"×11 |
G1.1/2"×11 |
7B-24 |
|
ADXX-32-32 |
G2"×11 |
G2"×11 |
7B-32 |
