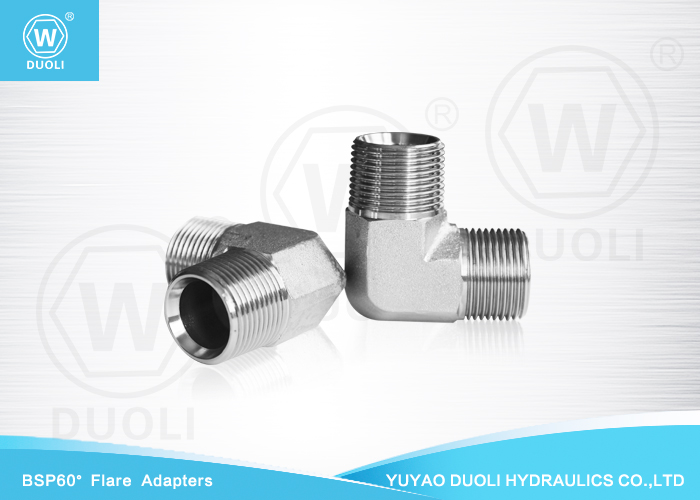

An elbow fitting with a BSP (British Standard Pipe) male 60° seat and BSPT (British Standard Pipe Taper) male threading is a critical component in fluid and gas handling systems, known for its efficiency, versatility, and reliability. This specialized fitting plays a crucial role in ensuring secure and leak-free connections within a piping system.
The BSP male 60° seat, conforming to British standards, is designed with a specific angle to achieve a secure and tight seal, enhancing the overall performance and longevity of the joint. This seat design provides resistance to vibration and high-pressure applications, making it ideal for various industrial and commercial settings where robust connections are paramount.
Complementing the BSP seat is the BSPT male threading, which is widely recognized for its tapered profile, aiding in sealing and preventing leakages. The tapered threads ensure a snug fit and a leak-proof connection, promoting a reliable flow of liquids or gases through the piping system.
When combined into an elbow fitting, these features deliver a versatile solution for routing and connecting pipelines efficiently. Whether in hydraulic systems, pneumatic applications, or other fluid handling setups, the elbow BSP male 60° seat/BSPT male fitting proves indispensable for ensuring seamless flow, durability, and safety within the system.
PART NO. |
Thread |
WINNER PART NO. |
Description |
|
1 |
2 |
|||
A5BA-02-02 |
G1/8"×28 |
R1/8"×28 |
1BT9-02SP |
ELBOW BSP MALE 60° SEAT / BSPT MALE |
A5BA-02-04 |
G1/8"×28 |
R1/4"×19 |
1BT9-02-04SP |
|
A5BA-04-04 |
G1/4"×19 |
R1/4"×19 |
1BT9-04SP |
|
A5BA-04-02 |
G1/4"×19 |
R1/8"×28 |
1BT9-04-02SP |
|
A5BA-04-06 |
G1/4"×19 |
R3/8"×19 |
1BT9-04-06SP |
|
A5BA-06-06 |
G3/8"×19 |
R3/8"×19 |
1BT9-06SP |
|
A5BA-06-04 |
G3/8"×19 |
R1/4"×19 |
1BT9-06-04SP |
|
A5BA-06-08 |
G3/8"×19 |
R1/2"×14 |
1BT9-06-08SP |
|
A5BA-08-08 |
G1/2"×14 |
R1/2"×14 |
1BT9-08SP |
|
A5BA-08-06 |
G1/2"×14 |
R3/8"×19 |
1BT9-08-06SP |
|
A5BA-08-12 |
G1/2"×14 |
R3/4"×14 |
1BT9-08-12SP |
|
A5BA-10-08 |
G5/8"×14 |
R1/2"×14 |
1BT9-10-08SP |
|
A5BA-10-12 |
G5/8"×14 |
R3/4"×14 |
1BT9-10-12SP |
|
A5BA-12-12 |
G3/4"×14 |
R3/4"×14 |
1BT9-12SP |
|
A5BA-12-08 |
G3/4"×14 |
R1/2"×14 |
1BT9-12-08SP |
|
A5BA-12-16 |
G3/4"×14 |
R1"×11 |
1BT9-12-16SP |
|
A5BA-16-16 |
G1"×11 |
R1"×11 |
1BT9-16SP |
|
A5BA-16-12 |
G1"×11 |
R3/4"×14 |
1BT9-16-12SP |
|
A5BA-16-20 |
G1"×11 |
R1.1/4"×11 |
1BT9-16-20SP |
|
A5BA-20-20 |
G1.1/4"×11 |
R1.1/4"×11 |
1BT9-20SP |
|
A5BA-20-16 |
G1.1/4"×11 |
R1"×11 |
1BT9-20-16SP |
|
A5BA-20-24 |
G1.1/4"×11 |
R1.1/2"×11 |
1BT9-20-24SP |
|
A5BA-24-24 |
G1.1/2"×11 |
R1.1/2"×11 |
1BT9-24SP |
|
A5BA-24-20 |
G1.1/2"×11 |
R1.1/4"×11 |
1BT9-24-20SP |
|
A5BA-24-32 |
G1.1/2"×11 |
R2"×11 |
1BT9-24-32SP |
|
A5BA-32-32 |
G2"×11 |
R2"×11 |
1BT9-32SP |
