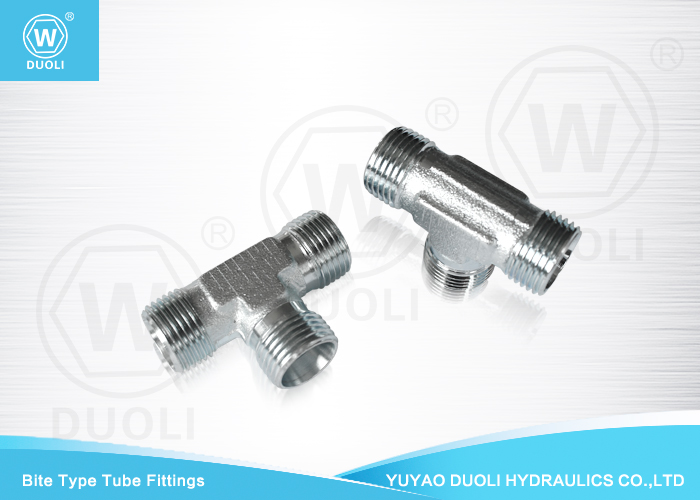

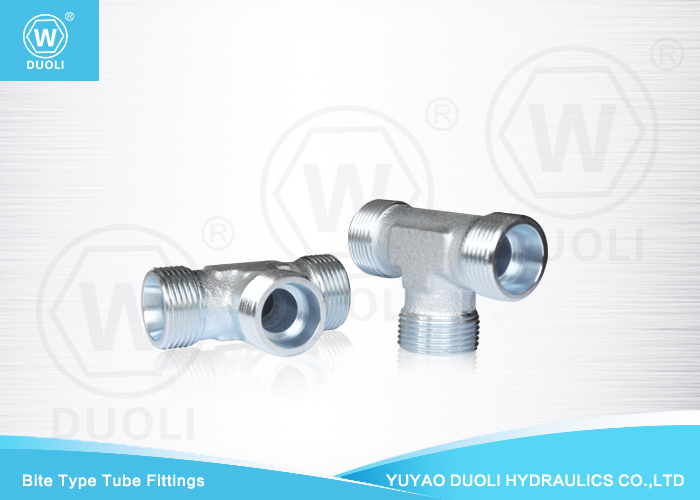

A Union Tee is a fundamental and versatile plumbing or piping component used in various industries and applications to facilitate the smooth flow and distribution of fluids or gases. This fitting is named after the shape of a "T" design, featuring three openings that allow for the connection of three pipes or tubes in a single point. Each opening typically has the same diameter, enabling a seamless transfer of materials without disruptions or changes in flow rate.
The primary purpose of a Union Tee is to create branching connections within a piping or plumbing system, enabling the diversion or combination of fluids or gases as needed. It is an essential component for efficient fluid management, ensuring functionality and distribution throughout the system.
One of the key advantages of utilizing a Union Tee is its ease of installation and disassembly, allowing for quick modifications or repairs to the system. This adaptability makes it a preferred choice in applications where flexibility and responsiveness to changes are crucial.
PART NO. |
Thread |
WINNER PART NO. |
Description |
|
1 |
2 |
|||
T 06LL |
M10×1.0 |
|
|
|
T 08LL |
M12×1.0 |
|
|
|
T 10LL |
M14×1.0 |
|
|
|
T 06L |
M12×1.5 |
|
AC-12 |
|
T 08L |
M14×1.5 |
|
AC-14 |
|
T 10L |
M16×1.5 |
|
AC-16 |
|
T 12L |
M18×1.5 |
|
AC-18 |
|
T 15L |
M22×1.5 |
|
AC-22 |
|
T 18L |
M26×1.5 |
|
AC-26 |
|
T 22L |
M30×2.0 |
|
AC-30 |
|
T 28L |
M36×2.0 |
|
AC-36 |
|
T 35L |
M45×2.0 |
|
AC-45 |
|
T 42L |
M52×2.0 |
|
AC-52 |
|
T 06S |
M14×1.5 |
|
AD-14 |
|
T 08S |
M16×1.5 |
|
AD-16 |
|
T 10S |
M18×1.5 |
|
AD-18 |
|
T 12S |
M20×1.5 |
|
AD-20 |
|
T 14S |
M22×1.5 |
|
AD-22 |
|
T 16S |
M24×1.5 |
|
AD-24 |
|
T 20S |
M30×2.0 |
|
AD-30 |
|
T 25S |
M36×2.0 |
|
AD-36 |
|
T 30S |
M42×2.0 |
|
AD-42 |
|
T 38S |
M52×2.0 |
|
AD-52 |
Note:The above code includes Adapters,if you need a complete set ,please “RN”to add,such as “T-06L/RN”.
