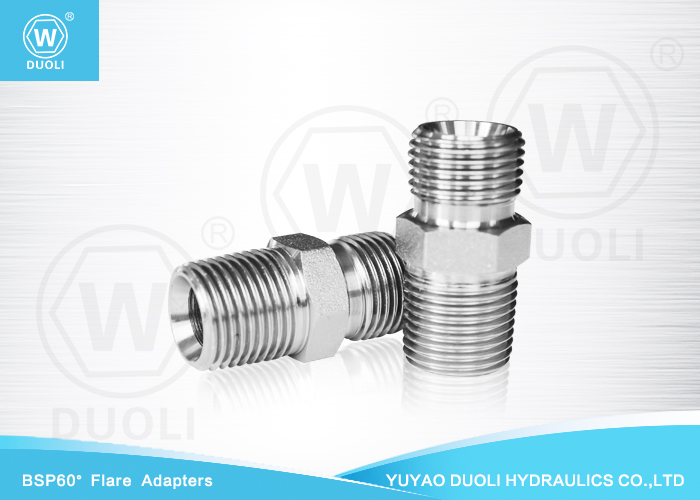

The BSP Male 60° Seat and BSPT Male fittings are crucial components in hydraulic and pneumatic systems, playing a vital role in facilitating fluid and gas flow. BSP, which stands for British Standard Pipe, is a widely recognized standard for pipe threads and fittings, primarily used in the United Kingdom and many other countries around the world.
The BSP Male 60° Seat fitting, known for its 60-degree tapered seat, ensures a secure and leak-free connection within hydraulic and pneumatic systems. The design of this fitting allows for a robust seal when mated with a corresponding female fitting, reducing the risk of fluid leakage, and enhancing overall system efficiency.
On the other hand, the BSPT Male fitting, which stands for British Standard Pipe Taper, features a tapered thread design that provides a tight seal and enhances the joint's integrity. The taper design allows for a reliable and leak-resistant connection, making it suitable for various industrial applications.
Both fittings are critical components in fluid and gas handling systems, contributing to the efficient and safe operation of machinery and equipment across diverse industries.
PART NO. |
Thread |
WINNER PART NO. |
Description |
|
1 |
2 |
|||
ADBA-02-02 |
G1/8"×28 |
R1/8"×28 |
1BT-02SP |
BSP MALE 60° SEAT / BSPT MALE
|
ADBA-02-04 |
G1/8"×28 |
R1/4"×19 |
1BT-02-04SP |
|
ADBA-04-04 |
G1/4"×19 |
R1/4"×19 |
1BT-04SP |
|
ADBA-04-02 |
G1/4"×19 |
R1/8"×28 |
1BT-04-02SP |
|
ADBA-04-06 |
G1/4"×19 |
R3/8"×19 |
1BT-04-06SP |
|
ADBA-06-06 |
G3/8"×19 |
R3/8"×19 |
1BT-06SP |
|
ADBA-06-04 |
G3/8"×19 |
R1/4"×19 |
1BT-06-04SP |
|
ADBA-06-08 |
G3/8"×19 |
R1/2"×14 |
1BT-06-08SP |
|
ADBA-08-08 |
G1/2"×14 |
R1/2"×14 |
1BT-08SP |
|
ADBA-08-04 |
G1/2"×14 |
R1/4"×19 |
1BT-08-04SP |
|
ADBA-08-06 |
G1/2"×14 |
R3/8"×19 |
1BT-08-06SP |
|
ADBA-08-12 |
G1/2"×14 |
R3/4"×14 |
1BT-08-12SP |
|
ADBA-10-08 |
G5/8"×14 |
R1/2"×14 |
1BT-10-08SP |
|
ADBA-10-12 |
G5/8"×14 |
R3/4"×14 |
1BT-10-12SP |
|
ADBA-12-12 |
G3/4"×14 |
R3/4"×14 |
1BT-12SP |
|
ADBA-12-08 |
G3/4"×14 |
R1/2"×14 |
1BT-12-08SP |
|
ADBA-12-16 |
G3/4"×14 |
R1"×11 |
1BT-12-16SP |
|
ADBA-16-16 |
G1"×11 |
R1"×11 |
1BT-16SP |
|
ADBA-16-12 |
G1"×11 |
R3/4"×14 |
1BT-16-12SP |
|
ADBA-16-20 |
G1"×11 |
R1.1/4"×11 |
1BT-16-20SP |
|
ADBA-20-20 |
G1.1/4"×11 |
R1.1/4"×11 |
1BT-20SP |
|
ADBA-20-16 |
G1.1/4"×11 |
R1"×11 |
1BT-20-16SP |
|
ADBA-20-24 |
G1.1/4"×11 |
R1.1/2"×11 |
1BT-20-24SP |
|
ADBA-24-24 |
G1.1/2"×11 |
R1.1/2"×11 |
1BT-24SP |
|
ADBA-24-20 |
G1.1/2"×11 |
R1.1/4"×11 |
1BT-24-20SP |
|
ADBA-24-32 |
G1.1/2"×11 |
R2"×11 |
1BT-24-32SP |
|
ADBA-32-32 |
G2"×11 |
R2"×11 |
1BT-32SP |
|
ADBA-32-24 |
G2"×11 |
R1.1/2"×11 |
1BT-32-24SP |
