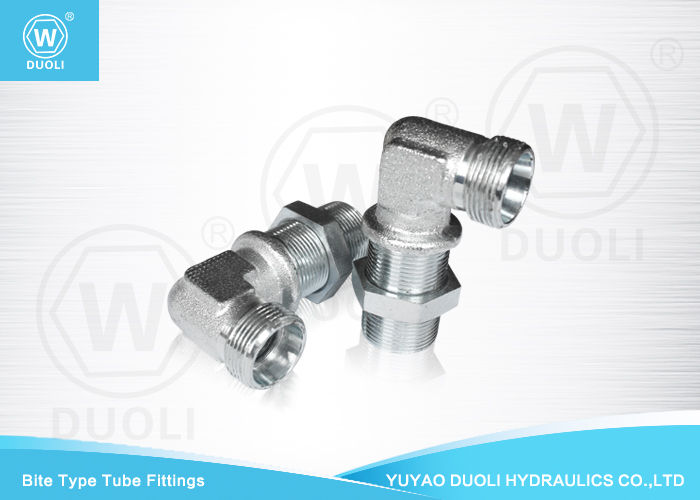

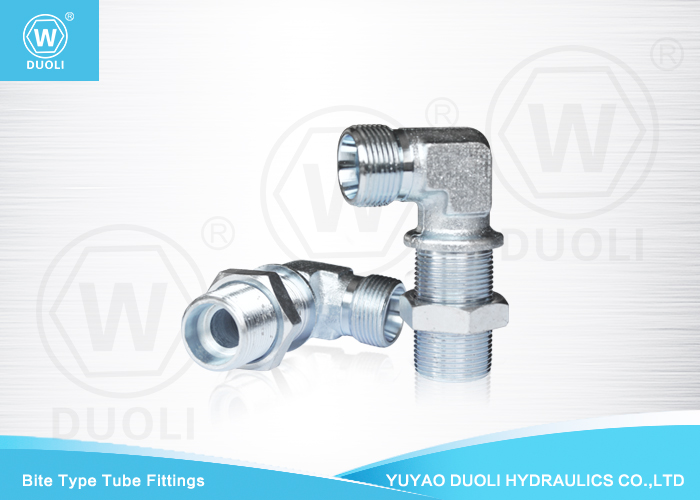

A bulkhead union elbow is a crucial component in fluid handling systems, designed to facilitate the efficient and seamless transfer of liquids or gases through pipes and tubing while ensuring structural integrity and a secure connection. This specialized fitting is recognized for its pivotal role in managing fluid flow, especially in industrial, automotive, aerospace, and plumbing applications.
In the context of fluid systems, a bulkhead union elbow is an elbow-shaped fitting that allows for a 90-degree change in direction of the fluid path, while also traversing through a bulkhead or partition. This design is essential for systems where pipelines must pass through walls, panels, or enclosures, maintaining a sealed and organized flow of fluids.
One of the primary advantages of a bulkhead union elbow is its ability to establish a secure connection between two tubes or hoses while allowing for a change in direction, optimizing space and reducing potential leaks. This adaptability and efficiency make it a fundamental component in creating well-structured, reliable, and functional fluid conveyance systems.
PART NO. |
Thread |
WINNER PART NO. |
Description |
|
1 |
2 |
|||
WSV 06L |
M12×1.5 |
|
6C9-12 |
|
WSV 08L |
M14×1.5 |
|
6C9-14 |
|
WSV 10L |
M16×1.5 |
|
6C9-16 |
|
WSV 12L |
M18×1.5 |
|
6C9-18 |
|
WSV 15L |
M22×1.5 |
|
6C9-22 |
|
WSV 18L |
M26×1.5 |
|
6C9-26 |
|
WSV 22L |
M30×2.0 |
|
6C9-30 |
|
WSV 28L |
M36×2.0 |
|
6C9-36 |
|
WSV 35L |
M45×2.0 |
|
6C9-45 |
|
WSV 42L |
M52×2.0 |
|
6C9-52 |
|
WSV 06S |
M14×1.5 |
|
6D9-14 |
|
WSV 08S |
M16×1.5 |
|
6D9-16 |
|
WSV 10S |
M18×1.5 |
|
6D9-18 |
|
WSV 12S |
M20×1.5 |
|
6D9-20 |
|
WSV 14S |
M22×1.5 |
|
6D9-22 |
|
WSV 16S |
M24×1.5 |
|
6D9-24 |
|
WSV 20S |
M30×2.0 |
|
6D9-30 |
|
WSV 25S |
M36×2.0 |
|
6D9-36 |
|
WSV 30S |
M42×2.0 |
|
6D9-42 |
|
WSV 38S |
M52×2.0 |
|
6D9-52 |
Note: The above code includes adapters, if you need a complete set, please add "RN", such as "WSV-06L/RN".
