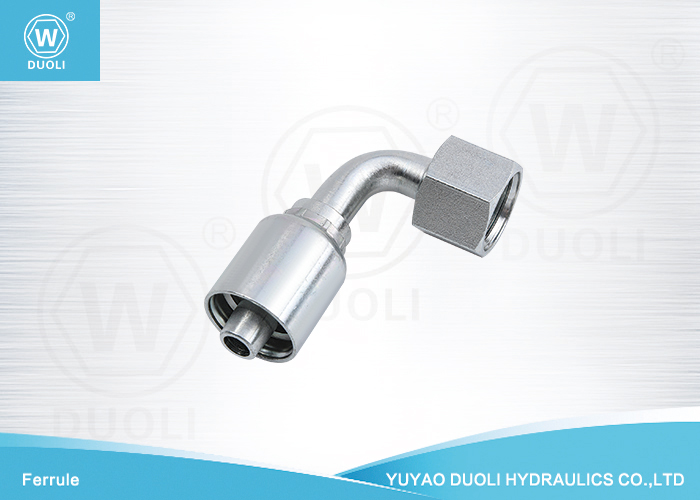

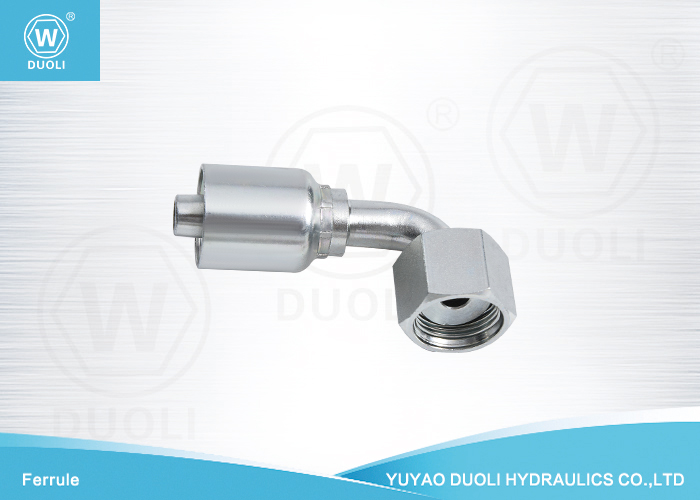

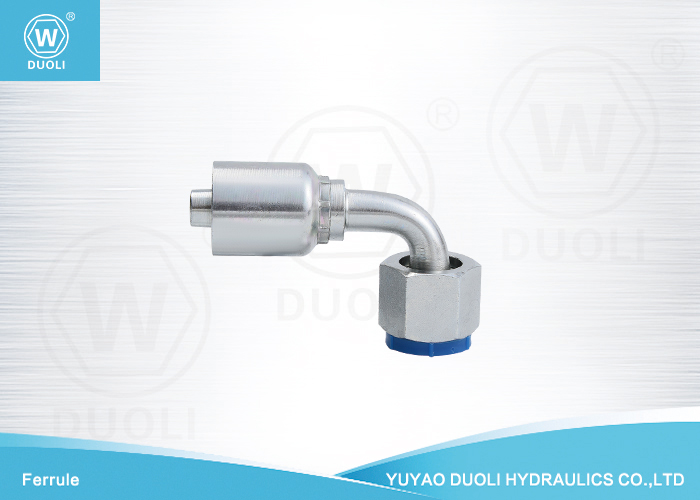

A 90 Degree Elbow ORFS (O-Ring Face Seal) One Piece Fitting is a crucial component in hydraulic and pneumatic systems, engineered to provide secure and leak-free connections in demanding industrial applications. This specialized fitting belongs to the ORFS family, renowned for its effectiveness in sealing under high-pressure conditions.
The term "90 Degree Elbow" refers to the fitting's angular orientation, allowing for a sharp change in direction within the fluid or gas transmission system. The 90-degree angle aids in the efficient routing of hoses and pipes, improving space and enhancing system performance. The ORFS design incorporates an O-ring, strategically placed within a face seal groove, to create a tight and reliable seal between the fitting and the corresponding component. This O-ring seal technology ensures leak-free connections even in environments characterized by pressures, vibrations, or temperature fluctuations.
The "One Piece" aspect of this fitting emphasizes its compact and integrated structure, making installation and maintenance more convenient. It reduces the risk of leaks associated with multiple-piece fittings, enhancing system safety and reliability. Whether in aerospace, automotive, hydraulic machinery, or other industrial sectors, the 90-degree Elbow ORFS One Piece Fitting stands as a fundamental tool in maintaining seamless fluid and gas flow within complex hydraulic and pneumatic systems.
PARKER NO. |
Thread |
|
1J943-4-4 |
9/16"-18UNF |
![]()
|
1J943-4-6 |
9/16"-18UNF |
|
1J943-6-4 |
11/16"-16UNF |
|
1J943-6-6 |
11/16"-16UNF |
|
1J943-6-8 |
11/16"-16UNF |
|
1J943-8-4 |
13/16"-16UNF |
|
1J943-8-6 |
13/16"-16UNF |
|
1J943-8-8 |
13/16"-16UNF |
|
1J943-8-10 |
13/16"-16UNF |
|
1J943-10-6 |
1"-14UN |
|
1J943-10-8 |
1"-14UN |
|
1J943-10-10 |
1"-14UN |
|
1J943-10-12 |
1"-14UN |
|
1J943-12-8 |
1.3/16"-12UN |
|
1J943-12-10 |
1.3/16"-12UN |
|
1J943-12-12 |
1.3/16"-12UN |
|
1J943-12-16 |
1.3/16"-12UN |
|
1J943-16-12 |
1.7/16"-12UN |
|
1J943-16-16 |
1.7/16"-12UN |
|
1J943-16-20 |
1.7/16"-12UN |
|
1J943-20-16 |
1.11/16"-12UN |
|
1J943-20-20 |
1.11/16"-12UN |
|
1J943-24-24 |
2"-12UN |
