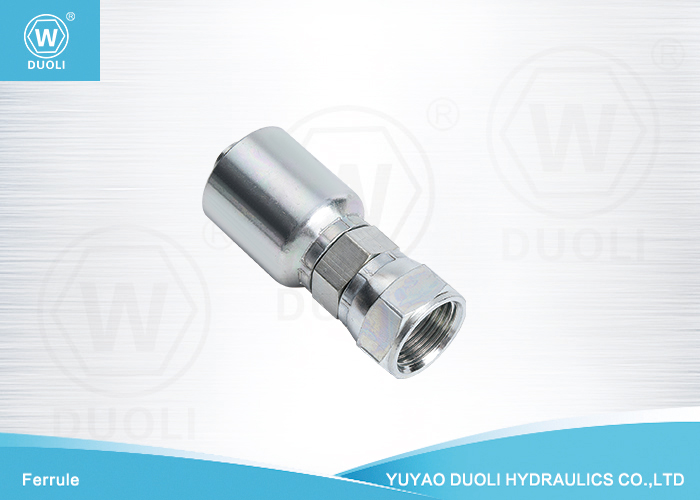

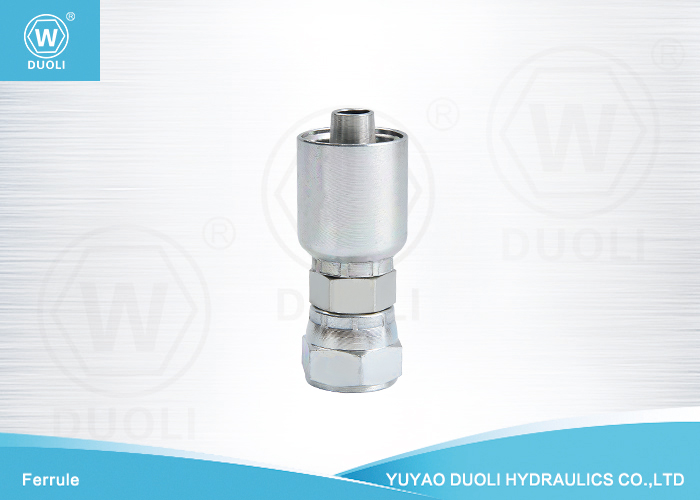

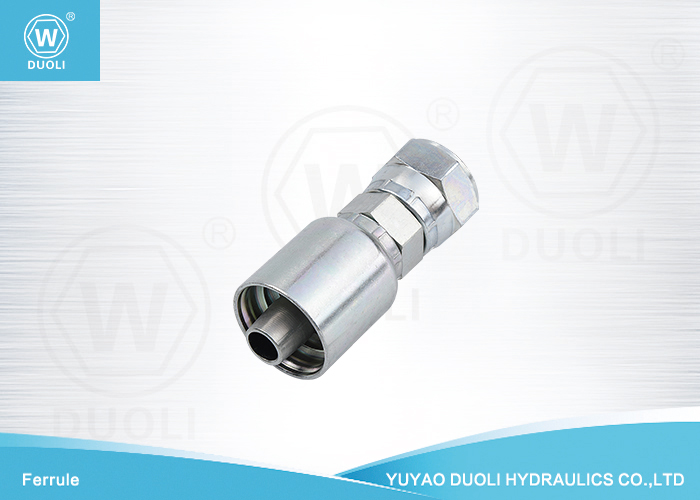

The Female JIC 37 One Piece Fitting is a critical component in the realm of fluid connectors and hydraulic systems, renowned for its efficiency, reliability, and versatility. This fitting is designed to provide a seamless and robust connection in hydraulic applications, particularly those requiring high pressure and secure sealing.
The term "JIC" stands for Joint Industry Council, a standardization body that has established specifications for hydraulic fittings. The "37" in the name refers to the flare angle of 37 degrees, a widely recognized and utilized angle in hydraulic fittings. The designation "One Piece" emphasizes the integrated and single-unit design of the fitting, enhancing its structural integrity and reducing potential leak points.
This type of fitting is predominantly used to connect hydraulic hoses to various components within a hydraulic system, ensuring the transfer of fluids under pressure with less loss or leakage. Its female designation implies that it is designed to accept a male counterpart, forming a secure and leak-resistant connection.
PARKER NO. |
Thread |
|
10643-4-4 |
7/16"-20UNF |
|
10643-4-6 |
7/16"-20UNF |
|
10643-5-4 |
1/2"-20UNF |
|
10643-6-4 |
9/16"-18UNF |
|
10643-6-6 |
9/16"-18UNF |
|
10643-6-8 |
9/16"-18UNF |
|
10643-8-6 |
3/4"-16UNF |
|
10643-8-8 |
3/4"-16UNF |
|
10643-8-10 |
3/4"-16UNF |
|
10643-10-6 |
7/8"-14UN |
|
10643-10-8 |
7/8"-14UN |
|
10643-10-10 |
7/8"-14UN |
|
10643-12-8 |
1.1/16"-12UN |
|
10643-12-10 |
1.1/16"-12UN |
|
10643-12-12 |
1.1/16"-12UN |
|
10643-14-12 |
1.3/16"-12UN |
|
10643-16-12 |
1.5/16"-12UN |
|
10643-16-16 |
1.5/16"-12UN |
|
10643-20-16 |
1.5/8"-12UN |
|
10643-20-20 |
1.5/8"-12UN |
|
10643-24-24 |
1.7/8"-12UN |
|
10643-32-32 |
2.1/2"-12UN |
