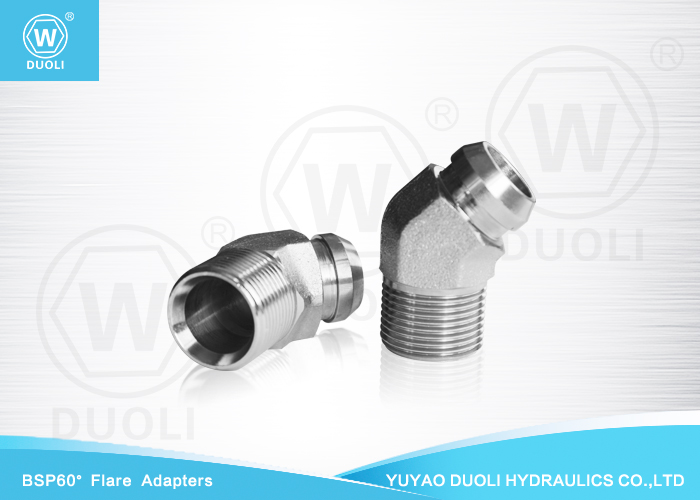

A 45° elbow with a BSP male 60° seat and a BSP female 60° cone is a crucial component in fluid handling systems, particularly within industries that rely on precise and efficient fluid conveyance. This specialized fitting is designed to facilitate fluid flow and direction, making it a vital part of piping and plumbing applications.
The BSP (British Standard Pipe) male 60° seat is a standardized threading system that ensures a secure and leak-proof connection, commonly used in hydraulic and pneumatic systems. This threading system allows for a tight seal and reliable performance, maintaining the integrity of the fluid handling system.
Complementing the BSP male 60° seat is the BSP female 60° cone, which provides a smooth and tapered surface for the male fitting to sit against. This cone interface enhances the efficiency of fluid flow by minimizing turbulence and pressure drops within the system.
The 45° elbow design is specifically engineered to redirect the fluid flow at a 45-degree angle, enabling effective navigation through tight spaces or corners within a system. This geometric adaptation ensures fluid continues to move efficiently while accommodating the layout and demands of the piping network.
PART NO. |
Thread |
WINNER PART NO. |
Description |
|
1 |
2 |
|||
A6BC-02-02 |
G1/8"×28 |
G1/8"×28 |
2B4-02 |
45 ELBOW BSP MALE 60° SEAT/BSP FEMALE 60° CONE
|
A6BC-04-04 |
G1/4"×19 |
G1/4"×19 |
2B4-04 |
|
A6BC-06-06 |
G3/8"×19 |
G3/8"×19 |
2B4-06 |
|
A6BC-08-08 |
G1/2"×14 |
G1/2"×14 |
2B4-08 |
|
A6BC-10-10 |
G5/8"×14 |
G5/8"×14 |
2B4-10 |
|
A6BC-12-12 |
G3/4"×14 |
G3/4"×14 |
2B4-12 |
|
A6BC-16-16 |
G1"×11 |
G1"×11 |
2B4-16 |
|
A6BC-20-20 |
G1.1/4"×11 |
G1.1/4"×11 |
2B4-20 |
|
A6BC-24-24 |
G1.1/2"×11 |
G1.1/2"×11 |
2B4-24 |
|
A6BC-32-32 |
G2"×11 |
G2"×11 |
2B4-32 |
