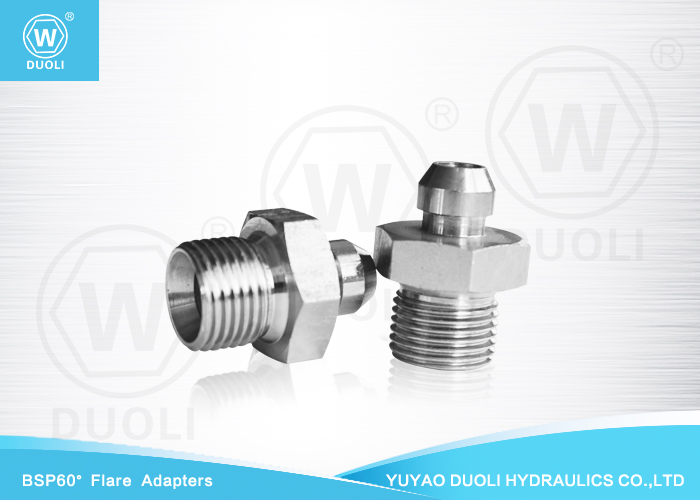

In the intricate realm of hydraulic systems, ensuring secure and efficient connectivity is paramount. The BSP Male 60° Seat (Bonded Seal) and BSP Female 60° Cone, represent pivotal components that contribute to seamless hydraulic operations.
The BSP Male 60° Seat, distinguished by its precisely engineered design, boasts a 60° cone angle and a bonded seal. This fusion of design elements ensures a leak-proof and robust connection, enhancing the system's reliability and reducing the risk of fluid leakage, which is critical in hydraulic applications. The bonded seal acts as a sealant, reinforcing the connection and providing a secure grip, vital for the consistent performance of hydraulic systems.
Complementing this male component, the BSP Female 60° Cone is equally vital. Its design, featuring a 60° cone, is meticulously crafted to mate seamlessly with the male counterpart, creating a strong, leak-free joint. This cone, precisely angled and machined, ensures alignment and engagement, guaranteeing a reliable connection.
Together, the BSP Male 60° Seat (Bonded Seal) and BSP Female 60° Cone exemplify the fusion of precision engineering and practicality, epitomizing the standards of quality and performance necessary for hydraulic systems. Their integration ensures not only fluid integrity but also operational efficiency, meeting the demanding requirements of modern hydraulic applications.
|
Thread |
WINNER PART NO. |
Description |
|
PART NO. |
1 |
2 |
||
ADBC-02-02 |
G1/8"×28 |
G1/8"×28 |
2B-02 |
BSP MALE 60° SEAT(BONDED SEAL)/BSP FEMALE 60° CONE
|
ADBC-02-04 |
G1/8"×28 |
G1/4"×19 |
2B-02-04 |
|
ADBC-04-04 |
G1/4"×19 |
G1/4"×19 |
2B-04 |
|
ADBC-04-06 |
G1/4"×19 |
G3/8"×19 |
2B-04-06 |
|
ADBC-04-08 |
G1/4"×19 |
G1/2"×14 |
2B-04-08 |
|
ADBC-06-06 |
G3/8"×19 |
G3/8"×19 |
2B-06 |
|
ADBC-06-08 |
G3/8"×19 |
G1/2"×14 |
2B-06-08 |
|
ADBC-08-08 |
G1/2"×14 |
G1/2"×14 |
2B-08 |
|
ADBC-08-12 |
G1/2"×14 |
G3/4"×14 |
2B-08-12 |
|
ADBC-10-10 |
G5/8"×14 |
G5/8"×14 |
2B-10 |
|
ADBC-10-12 |
G5/8"×14 |
G3/4"×14 |
2B-10-12 |
|
ADBC-12-12 |
G3/4"×14 |
G3/4"×14 |
2B-12 |
|
ADBC-12-16 |
G3/4"×14 |
G1"×11 |
2B-12-16 |
|
ADBC-16-16 |
G1"×11 |
G1"×11 |
2B-16 |
|
ADBC-16-20 |
G1"×11 |
G1.1/4"×11 |
2B-16-20 |
|
ADBC-20-20 |
G1.1/4"×11 |
G1.1/4"×11 |
2B-20 |
|
ADBC-20-24 |
G1.1/4"×11 |
G1.1/2"×11 |
2B-20-24 |
|
ADBC-24-24 |
G1.1/2"×11 |
G1.1/2"×11 |
2B-24 |
|
ADBC-32-32 |
G2"×11 |
G2"×11 |
2B-32 |
